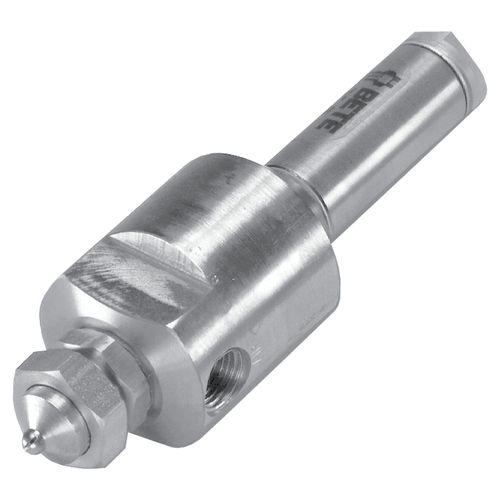

Spray atomizing nozzle XASF

airflat spraystainless steel

Internal Mix, Siphon-Fed Pneumatic Spray Nozzles DESIGN FEATURES HOW SPRAY PATTERN IS ACHIEVED The liquid is supplied by either a siphon or gravity feed in a siphon-fed system. An air regulator controls the air delivery pressure, while the air filter ensures that the compressed air is of high quality. Operational control is maintained by manual or solenoid valves used in conjunction with the various hardware assemblies. Liquid and air streams come together inside the nozzle and are mixed, and they exit through the same orifice creating a fan pattern. The streams are not independent; airflow changes will affect the liquid flow.
