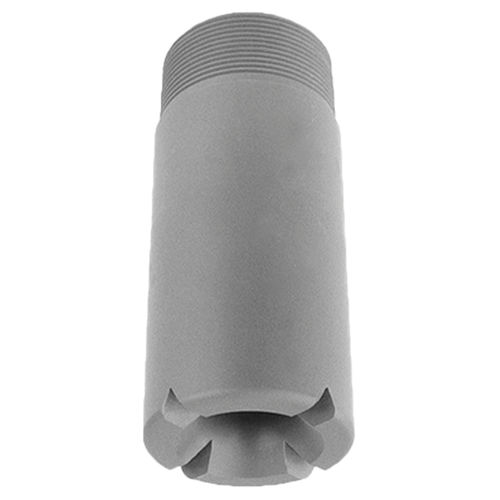

Spray nozzle NCSQ series
for liquidsfull-conePTFE

spray nozzle
spray nozzle
spray nozzle
Add to favorites
Compare this product


Characteristics

Function
spray
Fluid
for liquids
Stream
full-cone
Material
PTFE, polypropylene, PVC
Applications
for the food industry, for the steel industry, for the chemical industry, fire protection, refueling, for petrochemical applications, for the mining industry, for water treatment
Spray angle
60°, 90°, 120°, 70°, 80°, 110°, 100°
Other characteristics
NPT, male, female, BSP
Orifice diameter

Max.: 3.11 mm
(0.122 in)

Min.: 0.25 mm
(0.01 in)

Flow

Max.: 2,140 us gal/min
(8,100.78 l/min)

Min.: 2.01 us gal/min
(7.61 l/min)

Pressure

Max.: 100 psi

Min.: 3 psi

Description

Uniform Square Spray Pattern Coverage Nozzles DESIGN FEATURES Uniform square spray coverage Flanged connection available in larger models HOW SPRAY PATTERN IS ACHIEVED The square spray pattern generated by the NCSQ nozzle will not line up corner to corner with the "points" of the nozzle nose. When viewed from above, the square pattern will be rotated 10° - 15° counterclockwise. The figures above illustrate the angle of rotation of the pattern. R = 10° - 15°
