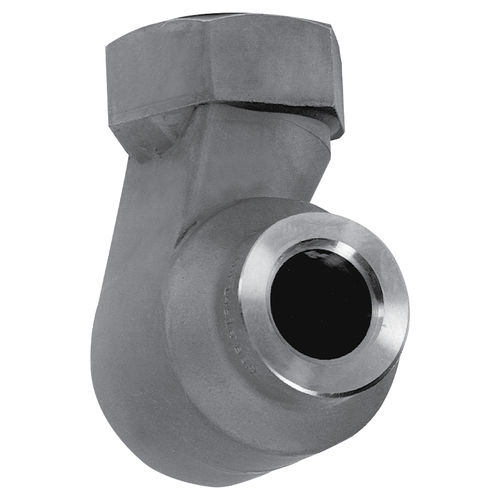

Spray nozzle TH seriesgashollow-conesilicon carbide
Add to favorites
Compare this product
Characteristics
- Function
- spray
- Fluid
- gas
- Stream
- hollow-cone
- Material
- silicon carbide, stainless steel, brass
- Applications
- for the food industry, for the steel industry, for the chemical industry, fire protection, refueling, for petrochemical applications, for the mining industry, for water treatment
- Spray angle
- 60°, 90°, 70°, 80°, 75°, 55°
- Other characteristics
- NPT, female, BSP, tangential, straight
- Orifice diameter
Max.: 1.42 in
Min.: 0.34 in
- Flow
Max.: 892 us gal/min
(3,376.59 l/min)Min.: 4.1 us gal/min
(15.52 l/min)- Pressure
Max.: 40 psi
Min.: 3 psi
Description
Large free passage
Most uniform liquid distribution around the periphery of the spray
Clog-resistant
No internal parts
One-piece casting
Inlet and outlet are in-line
Silicon carbide requests require review before quote/order acceptance - restrictions may apply
HOW SPRAY PATTERN IS ACHIEVED
Tangential hollow cone nozzles utilize a supply of liquid perpendicular to the direction of spray. Flow enters a swirl chamber without using internal components - allowing for maximum clog resistance.
