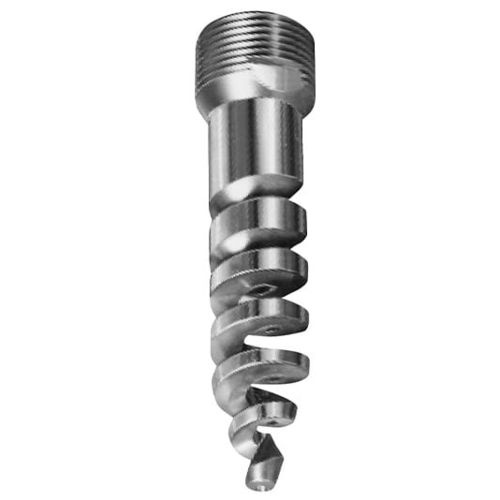

Spray nozzle TW serieswashingfor waterstainless steel
Add to favorites
Compare this product
Characteristics
- Function
- spray, washing
- Fluid
- for water
- Material
- stainless steel, brass, nickel alloy
- Applications
- for tanks
- Spray angle
- 180°, 270°
- Other characteristics
- compact, NPT, male, high-impact, rotating, BSP, spiral
- Orifice diameter
Min.: 0.19 in
Max.: 0.56 in
- Flow
Min.: 3 us gal/min
(11.36 l/min)Max.: 114 us gal/min
(431.54 l/min)- Pressure
Min.: 10 psi
Max.: 400 psi
Description
Clog-resistant spiral design
Energy-efficient; uses less water than conventional designs
Easy to maintain
Unique patterns that spray in opposing directions
HOW SPRAY PATTERN IS ACHIEVED
The spray pattern of the spiral nozzle is formed by the fluid shearing along with the turns of the spiral, which produce multiple concentric cones. These cones form 2 to 3 bands of relatively coarse droplets, surrounded by wider bands of relatively fine droplets.
