Spray nozzle NCFL
for waterfull-conePTFE

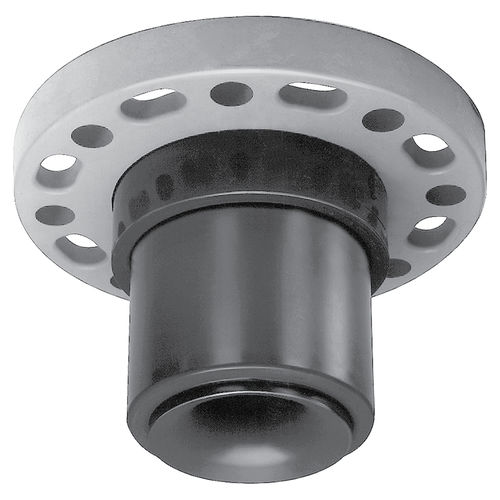

Spray nozzle - NCFL - BETE - for water / full-cone / PTFE
Spray nozzle - NCFL - BETE - for water / full-cone / PTFE
Spray nozzle - NCFL - BETE - for water / full-cone / PTFE - image - 2
Spray nozzle - NCFL - BETE - for water / full-cone / PTFE - image - 3
Spray nozzle - NCFL - BETE - for water / full-cone / PTFE - image - 4
Spray nozzle - NCFL - BETE - for water / full-cone / PTFE - image - 5
Spray nozzle - NCFL - BETE - for water / full-cone / PTFE - image - 6
Add to favorites
Compare this product


Characteristics

Function
spray
Fluid
for water
Stream
full-cone
Material
PTFE, polypropylene, PVC
Applications
for the food industry, for the steel industry, for the chemical industry, fire protection, refueling, for petrochemical applications, for the mining industry, for water treatment
Spray angle
60°, 90°, 120°, 70°, 80°, 110°, 100°, 75°
Other characteristics
male, female, axial, high-speed, large-format
Orifice diameter

Min.: 1.48 mm
(0.058 in)

Max.: 6.25 mm
(0.246 in)

Flow

Min.: 94 us gal/min
(355.83 l/min)

Max.: 9,320 us gal/min
(35,280.04 l/min)

Pressure

Min.: 3 psi

Max.: 20 psi

Description

Large internal free passages Uniform spray coverage High flow rates with coarse atomization Variety of polymer materials available for high corrosion resistance HOW SPRAY PATTERN IS ACHIEVED Atomization is achieved by the water being spun inside the nozzle and then exiting an orifice High flow rates produce coarse atomization
