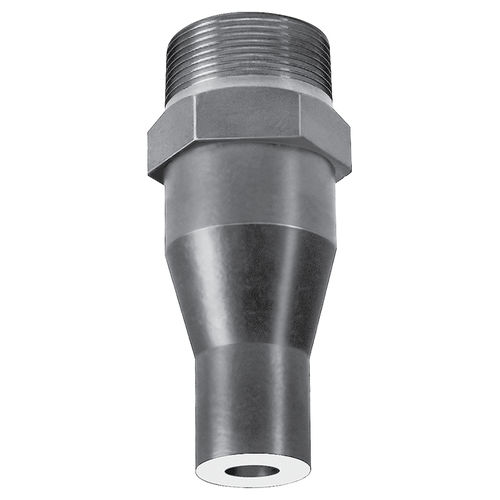

Spray nozzle NCJ seriesfor liquidshollow-conestainless steel
Add to favorites
Compare this product
Characteristics
- Function
- spray
- Fluid
- for liquids
- Stream
- hollow-cone
- Material
- PTFE, polypropylene, PVC, stainless steel, brass
- Applications
- for the food industry, for the steel industry, for the chemical industry, fire protection, refueling, for petrochemical applications, for the mining industry, for water treatment
- Spray angle
- 30°, 20°, 15°
- Other characteristics
- NPT, male, female, BSP, axial
- Orifice diameter
Min.: 0.3 in
Max.: 2.13 in
- Flow
Min.: 5.11 us gal/min
(19.34 l/min)Max.: 2,600 us gal/min
(9,842.07 l/min)- Pressure
Min.: 10 psi
Max.: 100 psi
Description
Narrow spray angles
High velocity
Flanged connections available
HOW SPRAY PATTERN IS ACHIEVED
Axial hollow cone nozzles supply axially to the spray. The inlet of the nozzle and the direction of the spray are inline. Flow enters the nozzle and is directed by channels or vanes to swirl along the axis of the nozzle. The emitting spray is atomized in a hollow cone pattern.
The spray is coarse and extremely hard-driving.
VIDEO
Catalogs
No catalogs are available for this product.
See all of BETE‘s catalogs
