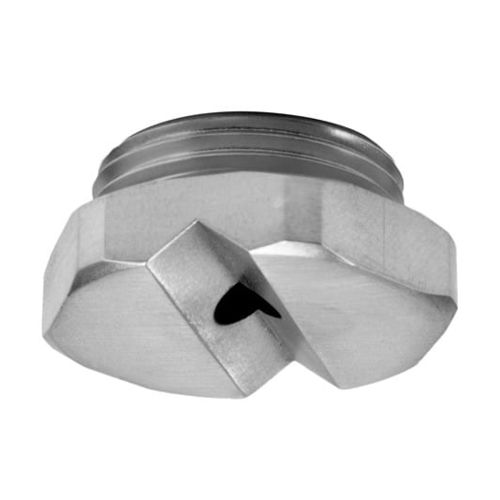

Spray nozzle NFS seriesfor liquidsflat sprayPVC
Add to favorites
Compare this product
Characteristics
- Function
- spray
- Fluid
- for liquids
- Stream
- flat spray
- Material
- PVC, stainless steel, brass
- Applications
- for the food industry, for the steel industry, for the chemical industry, fire protection, refueling, for petrochemical applications, for the mining industry, for water treatment
- Spray angle
- 60°, 90°, 120°, 30°, 20°, 45°
- Other characteristics
- compact, male, straight
- Orifice diameter
Min.: 0.03 in
Max.: 0.97 in
- Flow
Min.: 0.04 us gal/min
(0.15 l/min)Max.: 467 us gal/min
(1,767.79 l/min)- Pressure
Min.: 5 psi
Max.: 200 psi
Description
Compact Fan Nozzles for Tight Spaces With Low Clearance
DESIGN FEATURES
Extremely short length for minimum projection and maximum clearance
Produces a flat fan spray pattern available in a variety of spray angles
Available in straight (parallel) threads only, NPSM and G
Requires gasket to seal the connection
HOW SPRAY PATTERN IS ACHIEVED
A thin flat sheet of liquid is produced when the fluid exits the orifice, and the spray begins to widen and gradually moves outward from the nozzle
