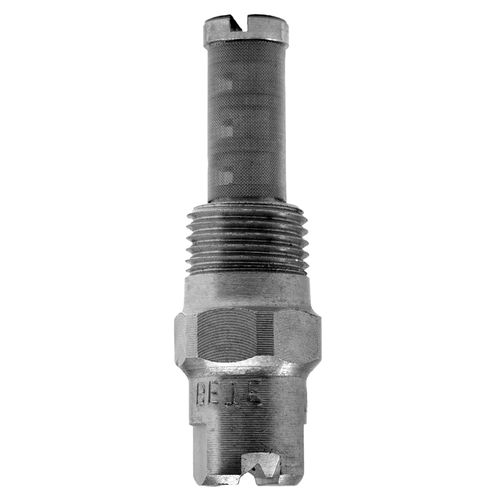

Spray nozzle NFV seriesfor liquidsflat spraystainless steel
Add to favorites
Compare this product
Characteristics
- Function
- spray
- Fluid
- for liquids
- Stream
- flat spray
- Material
- stainless steel, brass
- Applications
- for the food industry, industrial, for the steel industry, for the chemical industry, fire protection, refueling, for petrochemical applications, for the mining industry, for water treatment
- Spray angle
- 30°, 60°, 55°, 90°, 70°, 50°, 40°, 80°, 110°, 100°, 20°, 10°, 45°, 75°
- Other characteristics
- NPT, male, high-impact, BSP
- Orifice diameter
Max.: 0.16 in
Min.: 0.02 in
- Flow
Max.: 14.1 us gal/min
(53.37 l/min)Min.: 0.04 us gal/min
(0.15 l/min)- Pressure
Max.: 400 psi
Min.: 15 psi
Description
One-piece construction
No internal parts
Low nozzle maintenance
Optional removable strainer for easy cleaning
HOW SPRAY PATTERN IS ACHIEVED
A thin flat sheet of liquid is produced when the fluid exits the orifice, and the spray begins to widen and gradually moves outward from the nozzle
Produces a very high impact spray
