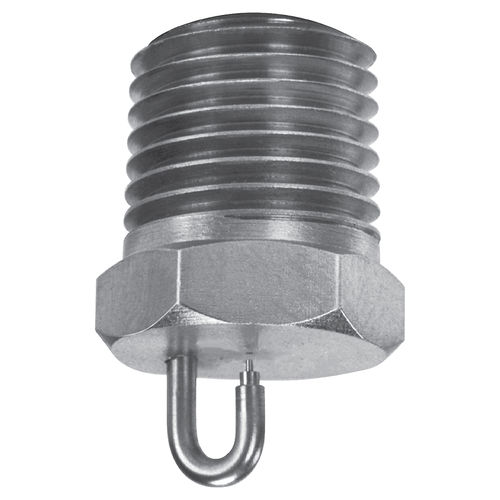

Misting nozzle PJ series sprayfor liquidsstainless steel
Add to favorites
Compare this product
Characteristics
- Function
- spray, misting
- Fluid
- for liquids
- Material
- polypropylene, stainless steel, brass, nickel alloy
- Spray angle
- 90°
- Other characteristics
- NPT, male, BSP, high-pressure, hydraulic, very fine atomization
- Orifice diameter
Min.: 0.01 in
Max.: 0.04 in
- Flow
Min.: 0.01 us gal/min
(0.04 l/min)Max.: 2.43 us gal/min
(9.2 l/min)- Pressure
Min.: 10 psi
Max.: 400 psi
Description
High energy efficiency
No whirl vanes or internal parts
Finest fog of any direct pressure nozzle
Produces a high percentage of droplets under 50 microns
Includes 100-mesh screen in 316SS
Optional 20-micron paper filter or 70-micron polypropylene filter
HOW SPRAY PATTERN IS ACHIEVED
High pressure shears the liquid by forcing it through tiny openings. An impingement pin distributes the liquid as it leaves the nozzle, deflecting it on the chosen surface.
