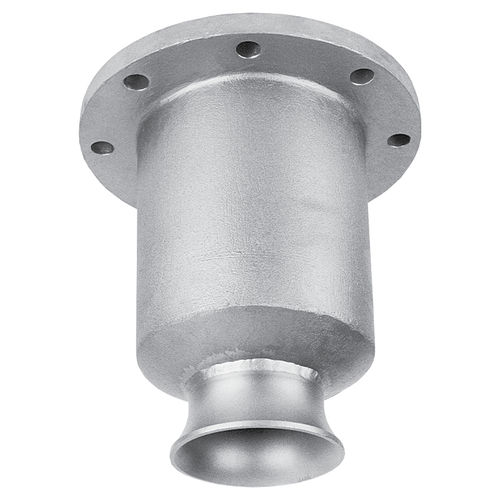

Spray nozzle TC seriescoolinggasfull-cone
Add to favorites
Compare this product
Characteristics
- Function
- spray, cooling
- Fluid
- gas
- Stream
- full-cone
- Material
- stainless steel
- Applications
- for the food industry, for the steel industry, for the chemical industry, fire protection, refueling, for petrochemical applications, for the mining industry, for water treatment
- Spray angle
- 60°, 90°, 120°, 70°, 80°, 110°, 100°
- Other characteristics
- NPT, male, female, BSP, axial, high-speed
- Orifice diameter
1.75 in, 2.06 in, 2.25 in
- Flow
Max.: 11,000 us gal/min
(41,639.53 l/min)Min.: 217 us gal/min
(821.43 l/min)- Pressure
Max.: 60 psi
Min.: 1 psi
Description
High-Flow Axial Spray Nozzles for Deluge Cooling & Gas Scrubbing
DESIGN FEATURES
One-piece body with integral vanes
Flanged connections available
Durable construction
HOW SPRAY PATTERN IS ACHIEVED
Atomization is achieved by the water being spun inside the nozzle and then exiting an orifice
Produces medium to coarse droplet size
More uniform pattern than spiral nozzle
VIDEO
