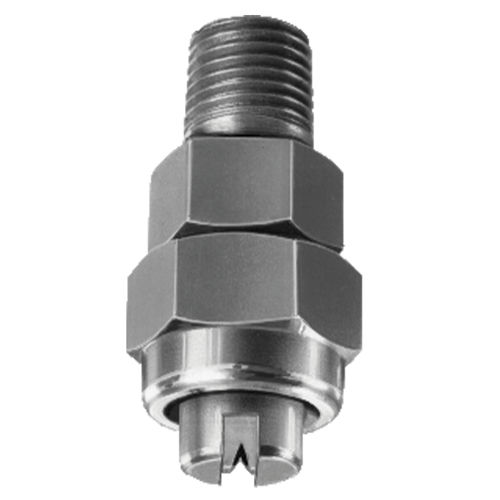

Spray nozzle BJ series for liquidsflat spraystainless steel
Add to favorites
Compare this product
Characteristics
- Function
- spray
- Fluid
- for liquids
- Stream
- flat spray
- Material
- stainless steel, brass
- Applications
- for the food industry, for the steel industry, for the chemical industry, fire protection, refueling, for petrochemical applications, for the mining industry, for water treatment
- Spray angle
- 60°, 90°, 70°, 100°, 30°, 50°, 40°, 80°, 75°, 110°, 20°, 10°, 55°, 45°
- Other characteristics
- NPT, male, female, BSP, low flow rate
- Orifice diameter
Min.: 0.02 in
Max.: 0.2 in
- Flow
Min.: 0.02 us gal/min
(0.08 l/min)Max.: 24.8 us gal/min
(93.88 l/min)- Pressure
Min.: 5 psi
Max.: 500 psi
Description
Three-piece construction
Interchangeable spray tips
Integral strainer available (please refer to the Accessories PDF for more information)
HOW SPRAY PATTERN IS ACHIEVED
A thin flat sheet of liquid is produced when the fluid exits the orifice, and the spray begins to widen and gradually moves outward from the nozzle
