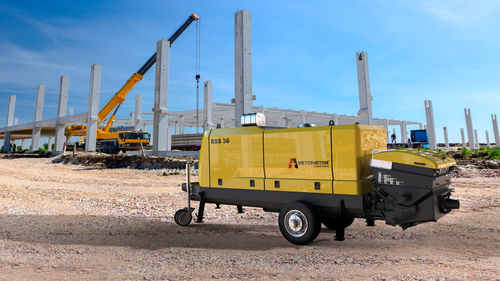

Stationary concrete pump BSS 36
for constructiondieselpiston

Add to favorites

Compare this product

Characteristics

Configuration: stationary
Applications: for construction
Type of fuel: diesel
Other characteristics: piston
Output: 103 m³/h
(3,637.4 ft³/h)
Pumping pressure: 153 bar
(2,219.1 psi)
Width: 2,300 mm
(91 in)
Length: 7,340 mm
(289 in)
Height: 3,165 mm
(125 in)
Weight: 10,500 kg
(23,149 lb)

Description

CONTROL SYSTEM ■ Smartstar Control ■ Color LCD ■ Diagnostic ■ Fuel Saving Mode ■ Remote Control OPTIONS ■ Hopper vibrator ■ Hydraulic driven fan ■ Betonstar IoT system ■ Remote control(HBC) ■ Air Compressor ■ High pressure cleaning kit (140 bar ) ■ Water pump (67 lpm) ■ Water tank (500 lt and hose 15 m) PUMPING UNIT Stroke - 27 Stroke / min Piston side - Theo. Conc. Output(max) - 74 m3/h Theo. Conc. Pressure(max - 224 bar Stroke - 19 Stroke / min Concrete Valve - S valve system Switch-over pressure S-tube - 190 bar Delivery cylinders diameter - 200 mm Delivery cylinders stroke - 2100 mm Hopper capacity - 650 lt Hopper outlet diameter - 125 mm Lateral output pipeline - 150 mm Switching System - Elect. Magn. Sensor Lubrication System - Hydraulic (LINCOLN) Electrik Box - Waterproof and PLC controlled
