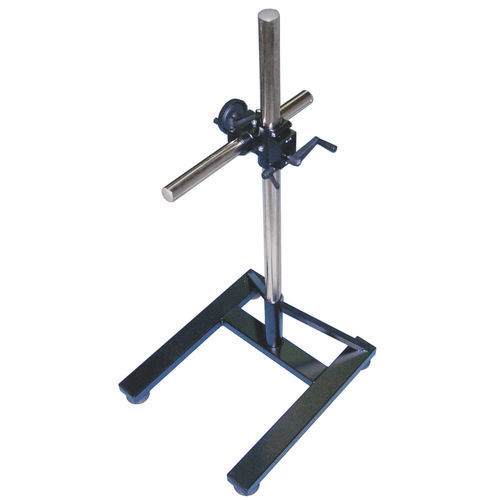

Torque support 3222

steelgalvanised steeladjustable

Use: support adjustable on 2 axes with handwheel on rack for frequent adjustments for marking units, ergonomic (the handwheels are on the cross unit). State of supply 2 toothed columns in nickel-plated steel (electrolytic nickel-plating), 1 aluminium carriage, 1 handwheel, 1 handle and 2 levers in reinforced polyamide, 1 steel pedestal, 4 polyamide feet with galvanised steel stem, galvanised steel nuts and bolts. Characteristics: rack pitch 3 (1 handwheel turn = 3 linear mm). Pedestal adjustable in height for handling with transpallets. Operation: STEP-BY-STEP (NO continuous operation). Max. 120 rpm; max time: 1 (min; on/off ratio=1/10 (max 10%). Tightening torque 50Ø = 35 Nm; 60Ø = 50 Nm.
