Manual positioner 1298
linear1-axisworm gear

manual positioner
manual positioner
manual positioner
manual positioner
manual positioner
Add to favorites
Compare this product


Characteristics

Type
manual
Orientation
linear
Number of axes
1-axis
Technology
worm gear

Description

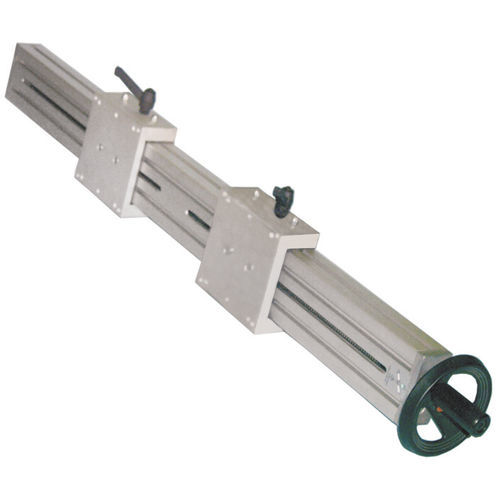

Use: positioning with opposed movement adjustable with worm screw. To reduce the setup time for format change (e.g. along packaging lines or bundling machine outfeed lines). The grooves offer the possibility of bracketing. State of supply profile in anodised aluminium, trapeze screws and lead nuts in steel, 2 anodised aluminium carriages, 2 black reinforced polyamide ratchet levers, galvanised steel nuts and bolts Characteristics: Tr20 worm screw, pitch 4 (1 handwheel turn = 4 linear mm on each carriage). Positioning accuracy: Each carriage has a travel of ±0.3 mm/300mm* Operation: STEP-BY-STEP (NO continuous operation). Max. 120 rpm; max time: 1 (min; on/off ratio=1/10 (max 10%). * the ACCURACY indicated is theoretical. Accuracy levels depend on the actual conditions of use and are affected by the accuracies of the kinematic chain - consisting of the handwheel/crank handle/revolution counter kit or any connection joints - and by the performance of the position control system (encoder, etc.).
