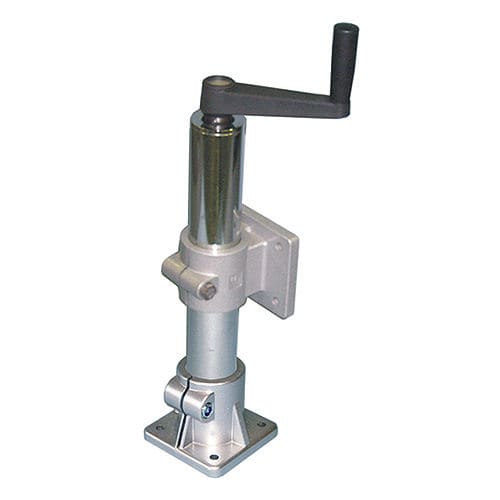

Manual positioner 1650linear1-axisworm gear
Add to favorites
Compare this product
Characteristics
- Type
- manual
- Orientation
- linear
- Number of axes
- 1-axis
- Technology
- worm gear
- Other characteristics
- precision
Description
Use: positioning adjustable with handle on one axis with worm screw for frequent adjustments.
State of supply 1 column in nickel-plated steel (electrolytic nickel-plating), trapeze screw and lead nut in burnished steel, brass sliding bearings, 1 aluminium carriage, 1 pedestal in RAL 9006 grey aluminium, 1 handle in reinforced polyamide, galvanised steel nuts and bolts.
Characteristics: Tr20 worm screw, pitch 4 (1 handwheel turn = 4 linear mm).
Positioning accuracy: ±0.3 mm/300mm*.
Carriage play: 0.5°. Play is eliminated when fitted in pairs of two positioners, or by combining it with a linear guide for precision and load bearing.
Operation: STEP-BY-STEP (NO continuous operation).
Max. 120 rpm; max time: 1 (min; on/off ratio=1/10 (max 10%).
