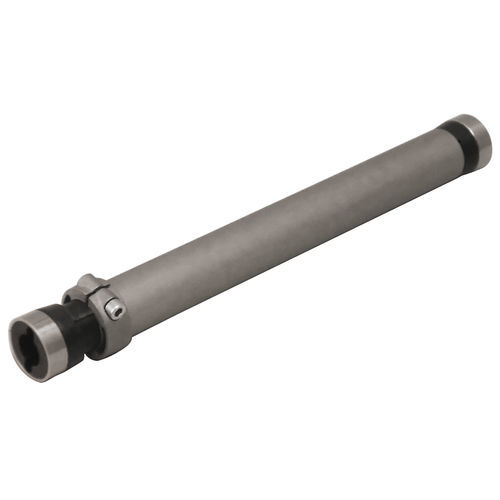

Stainless steel shaft 4632aluminumtelescopictransmission
Add to favorites
Compare this product
Characteristics
- Material
- stainless steel, aluminum
- Type
- telescopic
- Product applications
- transmission, tube
- Torque
20 Nm
(14.7512 ft.lb)- Diameter
28 mm
(1.1 in)- Length
1,000 mm
(39.37 in)
Description
Use: mounted on the angular idler pins, it transmits synchronised and not aligned movement to 2 positioners.
State of supply 1 fixed sleeve body in polyamide, 1 removable sleeve body in polyamide, 1 stop ring for removable sleeve in shot-peened Zamak, 1 stiffening ring in AISI 304 stainless steel, 1 aluminium tube.
Torsion angle ≈ 7° (L=1000 and torque 20Nm).
