3-axis positioning system 2990linearwormopposed movement
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Features
- linear, opposed movement, worm
- Other characteristics
- high-accuracy, adjustable
Description
Use: positioning with opposed movement adjustable with worm screw in combination with non-standard carriages constructed by the customer.To reduce set-up times for format changeover (e.g. long packaging lines or bundling machine outfeed lines).

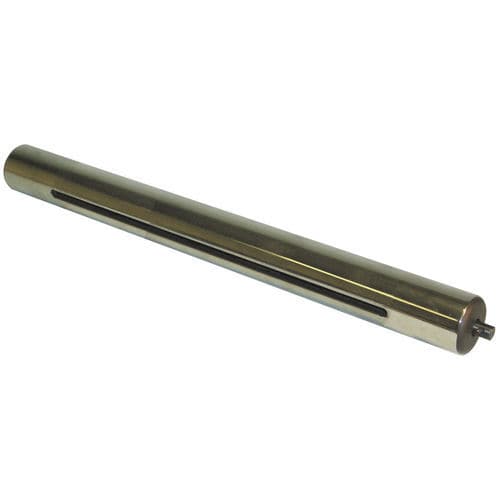

State of supply 1 nickel-plated steel column, steel trapeze screws and lead, 4 DIN 7984 M6x12 screws in galvanised steel.
Characteristics: Tr20 worm screw, pitch 4 (1 handwheel turn = 4 linear mm on each carriage).
Positioning accuracy: ±0.3 mm/300mm*.
Operation: STEP-BY-STEP (NO continuous operation).
Max. 120 rpm; max time: 1 (min; on/off ratio=1/10 (max 10%).
