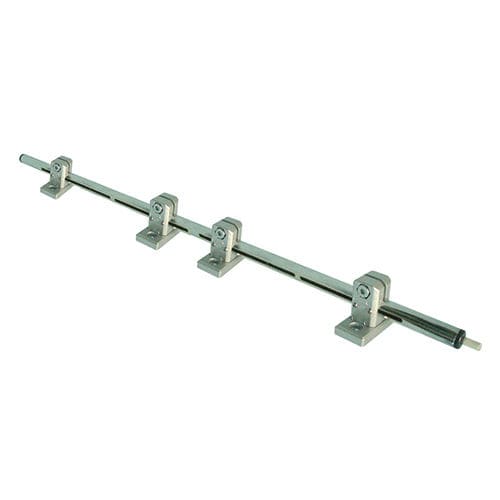

3-axis positioning system 3853wormopposed movementadjustable
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Features
- worm, opposed movement
- Other characteristics
- adjustable
Description
Use: positioning with opposed movement adjustable with worm screw. To reduce the setup time for format change (e.g. along 2 packaging lines with fixed distance between centres or bundling machine outfeed lines).
State of supply 1 column in nickel plated steel (electrolytic nickel-plating) or AISI304 stainless steel (see table), trapeze screws in steel and lead nut in bronze, ball bearings in steel, 2 carriages in RAL 9006 grey aluminium, galvanised steel nuts and bolts.
Characteristics: worm screw Tr10 pitch 3 (1 handwheel turn = 3 linear mm on each carriage).
Operation: STEP-BY-STEP (NO continuous operation).
Max. 120 rpm; max time: 1 (min; on/off ratio=1/10 (max 10%).
