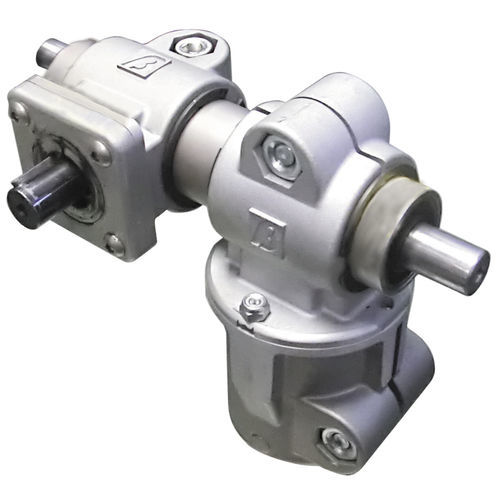

90° angle gearbox 4166

keyed shaftaluminum

Use: applicable to 2 or more column positioners, connected with a 90° angle, when you want to synchronise their movements with each other. State of supply aluminium clamps, steel shafts and gears, anodised aluminium spacer, galvanised steel nuts and bolts, 5x20 elastic pin in burnished steel. Characteristics: possibility of connecting the positioners at different heights, with an adjustment angle up to ±90°. Operation: STEP-BY-STEP (NOcontinuous operation). Max. 120 rpm; max time: 1 min; on/off ratio=1/10 (max 10%). Maintenance: not required, lubricated for life.
