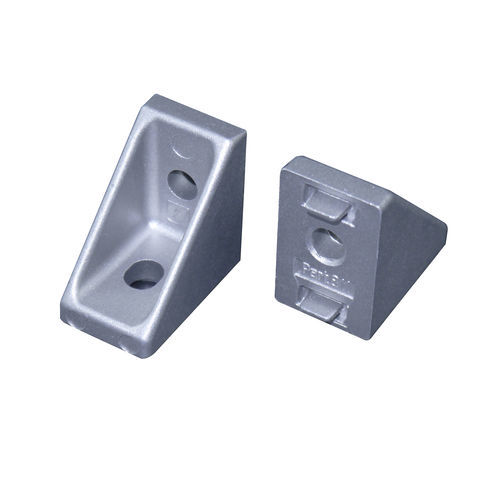

Steel angle bracket 811

Use: applicable to Parts 8032Q, 8045, M045R, 8090, M090R, 8990. Also usable as anti-rotation system without having to drill holes in the profiles. Material aluminium angle; steel nuts and bolts (see table). State of supply codes 685282-685282I: without hardware; Codes 672222-672222I-674755: no.2 M8x20 TCEI screws and no.2 M8 square nuts (for all profiles except Part.8032Q 32x32 4-groove profile); Code 521013: no.2 M8x16 TCEI screws and no.2 M8 square nuts (for Part.8032Q 32x32 4-groove profile only). Characteristics: provision for M8 nuts and bolts; the reference notches can be easily removed if the angle is to be fastened where there is no groove.
