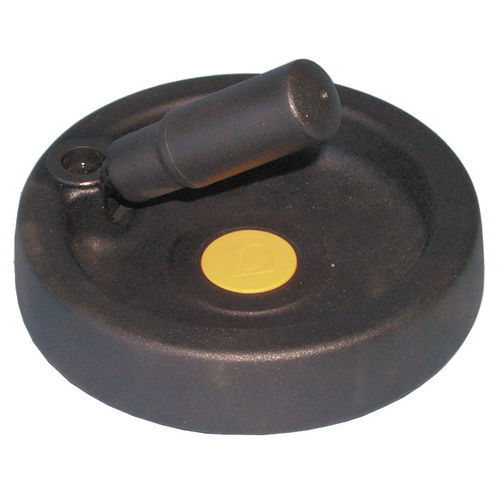

Operating handwheel 1897controlwith handlesteel
Add to favorites
Compare this product
Characteristics
- Function
- operating, control
- Configuration
- with handle
- Material
- polyamide, steel
- Outside diameter
Min.: 35 mm
(1.38 in)Max.: 60 mm
(2.36 in)
Description
Use: for manual drive of the column and profile positioners with 12ø, 8ø or 6ø pin. The foldaway grip reduces the dimensions and the risk of movements caused by accidental impact.
State of supply black reinforced polyamide, RAL1006 yellow reinforced polyamide cover, galvanised steel insert, UNI 5927 grub screw in burnished steel.
Combinations based on the diameter d, on 60ø, 50ø, 40ø, 35ø column and profile positioners (see table).
Customisations Cover in RAL colour on request for adequate quantities.
