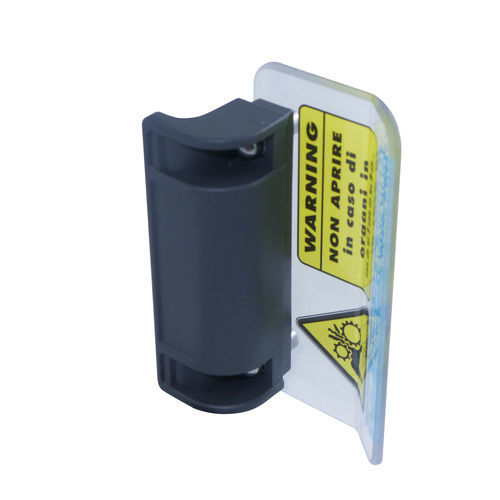

Sliding handle 4293

foldingpolyamidefinger

Use: thanks to the safety shield provided, which prevents accidentally crushing the fingers, this handle is particularly suitable for applications on sliding doors (both vertical and horizontal) and folding doors. Material: handle in reinforced polyamide with glass fibre, shield in shockproof acrylic, nuts and bolts in steel. Characteristics: the shape provides additional finger protection. Code 687418 - 687428 - 687438 - 687448 State of supply without nuts and bolts Code 687458- 687468 State of supply complete 2 M6x20 socket head screwsand 2 M6 square nuts. Code 687478- 687488 State of supply complete 2 M8x20 socket head screwsand 2 M8 square nuts. Code 687658 - 687668 Use: for 25x25 tubes with fitting from the inside. State of supply complete with 2 M6x16 socket head screws, 2 blind nuts, 2 AISI 304 stainless steel washers, 2 end caps in black polyethylene. Code 687678 - 687688 Use: for 25x25 tubes with front fitting. State of supply complete with 2 M6x40 socket head screws, 2 washers, 2 blind nuts, 2 spacers.
