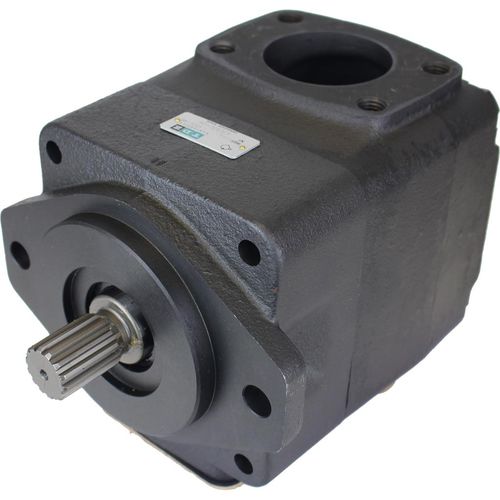

Hydraulic rotary vane pump DT6D
Add to favorites
Compare this product
Characteristics
- Type
- rotary vane
- Pressure
Max.: 240 bar
(3,481 psi)Min.: 210 bar
(3,046 psi)- Flow rate
Max.: 61 us gal/min
(230.91 l/min)Min.: 14 us gal/min
(53 l/min)- Speed
Max.: 2,500 rpm
(15,708 rad.min-1)Min.: 500 rpm
(3,142 rad.min-1)- Weight
24 kg
(52.91 lb)- Power
Max.: 120 kW
(163.15 hp)Min.: 0 kW
(0 hp)
Description
Vane pumps are uni-directional units with a great versatility and a silent running.
Their cartridges are replaceable in a very easy way.
Output ports configuration can be customized.
Catalogs
Vane Pumps Catalogue
146 Pages
