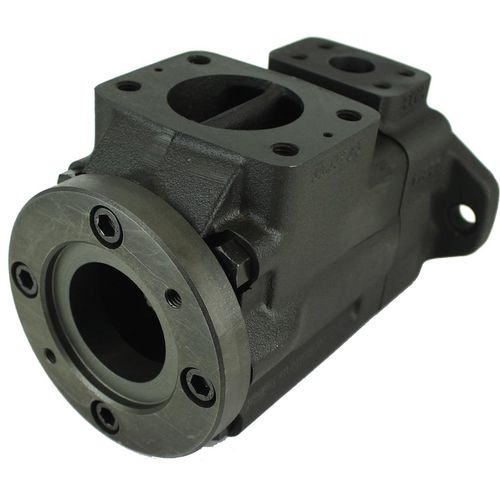

Hydraulic rotary vane pump VS4T seriesdoubletriple
Add to favorites
Compare this product
Characteristics
- Type
- rotary vane
- Other characteristics
- double, triple
- Pressure
Max.: 210 bar
(3,046 psi)Min.: 125 bar
(1,813 psi)- Flow rate
Max.: 88 l/min
(23.25 us gal/min)Min.: 32 l/min
(8.45 us gal/min)- Speed
Max.: 2,500 rpm
(15,708 rad.min-1)Min.: 600 rpm
(3,770 rad.min-1)- Weight
19.5 kg
(42.99 lb)- Power
Max.: 23.8 kW
(32.36 hp)Min.: 6.9 kW
(9.38 hp)
Description
Vane pumps are uni-directional units with a great versatility and a silent running. Their cartridges are replaceable in a very easy way. Output ports configuration can be customized. Thru Drive Single Vane Pump, to reach a double or triple systems. Available in 3 different mounting flanges: SAE A, SAE B & SAE C.
