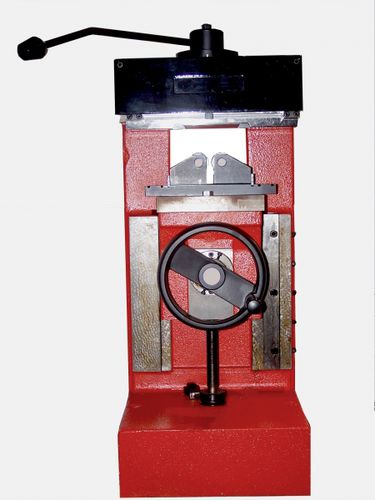

Roll marking machine FRAP S series

for cylindrical parts

Electrical control marking machine by hauling for identifying, numbering, milling, graduating... cylindrical, conical or plane pieces. It's a very strong machine, elaborated for serial works. Specifications : • Dimensions: 350x400x1000mm. • Weight: 200kg • Working area size: 200x175mm. • Reducer engine self-braking 230V / 380V. • Bimanual safety control. • Maximum Ø: 170mm. • Maximum marking length: 250mm. • Maximum adustable pressure of marking: 800kg. • Sliding head engraving holder mounted on ball bearing. • Electrical contact travel end. • Working table equipped with compensation springs for pieces out of readings. • Hourly output : 1,500 pièces/hour. Accessories: - dovetail engraving-holder - roller pieces-rest - foot-driven. We make all engravings adaptable for this machine.
