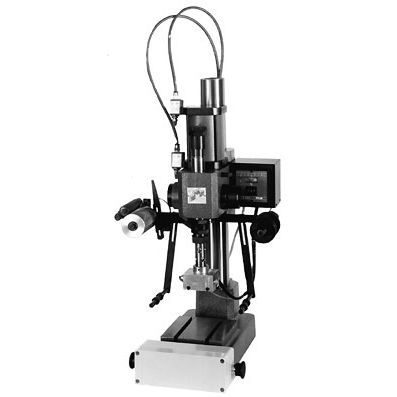

Hot marking machine FRAP S series

plasticwoodpaper

A pneumatic operated machine with electric heating suited to hot marking, with or without foil, on wood, plastic, leather, cloth, paper, etc. Specifications : • Total height: 1000mm. • Maximum daylight (without tooling): 370mm. • Throat: 210mm. • Weight: 180kg. • Air presure: 6 bar. • Heater block 230V - 1000W. Dimensions: 150 x 150 mm. • Electronic rheostat for tempeature adjustment from 0 to 350°C. • Timing. • Automatic foil feed adjustable from 0 to 200mm. • Maximum width of the foil roll: 150mm. • Adjustable load. • Mechanical stop of the spindle stroke. • Hourly output: 1,200/1,500 parts. • Possibility to fit a longer column. • We make all engravings adaptable to this machine. Specifications : • Total height: 640mm. • Maximum daylight (without tooling): 300mm. • Throat: 150mm. • Weight: 70kg. • Air pressure: 4 bar. • Heater block 230V - 1000W. Dimensions: 60x80mm • Electronic rheostat for tempeature adjustment from 0 to 350°C. • Automatic foil feed adjustable from 0 to 80mm. • Maximum width of the foil roll: 100mm. • Adjustable load. • Mechanical stop of the spindle stroke. • Hourly output: 1,200/1,500 parts. • Possibility to fit a longer column. • We make all engravings adaptable to this machine.
