Spot welding machine automaticpneumatic
Add to favorites
Compare this product
Characteristics
- Technique
- spot
- Operational mode
- automatic
- Other characteristics
- pneumatic
- Power
6,000 W
- Output frequency
50 kHz
Description

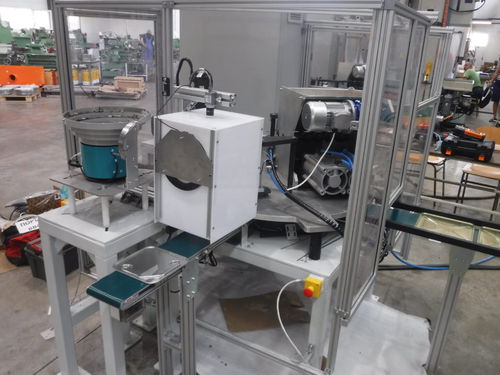

Spot welding machine, carousel type, equipped with automatic feeding of the bracets (cleats) and wire bending unit for holders
Connections and power supply
Air supply: 6-8bar
Control voltage: 24V DC
Transformer: 76kW, 5400A/10V
Dimensions and weight
Outside dimensions: 2500mm x 2500mm
Height: 1980mm
Weight: 975kg
Technical features
Max working size of the lids: 235mm x 235mm
Min working size of the lids: upon request
Speed: up to 25 lids per minute
Electrical components: Mitsubishi
PLC: Mitsubishi FX5U-64MT/DSS
Pneumatic components: Festo
Control cabinet: stands together with the machine frame, 30% free space, equipped with air cooling by fan
