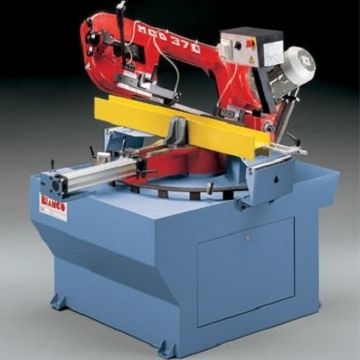

Band saw 370 M DS MP

horizontalfor aluminumautomatic

The 370 is a manual machine equipped with a special downfeed control device that allows a self-acting cutting operation. It is composed of a hydraulic brake with valve for the cutting speed adjustmen and of a spring tha varies the thrust of the bow group on the material to be cut. The machine is robust and particularly recommended for cutting medium-size round businesses in the structural metal sector, this machine can also be used for cutting angles of up to 60 degrees. The care taken with the machine's design and the technical features means high precision cutting and absolute reliability. TECHNICAL SPECIFICATIONS: • Base with welded, standardised structure. • Bow made out of hardened aluminium and mounted onto conical roller ball bearings. • Downfeed control device • Hydraulic brake with electric skip. • Vice unit made from spheroid cast iron. • Reducer unit consists of hardened and ground gears. • Adjustable widia blade-guide slide blocks. • Low voltage electrical system in line with EEC norms. • Embossed enamel Finish: RAL 3001 red bow - RAL 7036 grey base. STANDARD ACCESSORIES: • 0 - 500 millimetre arm with checking. • Pieces discharge slide. ACCESSORIES AVAILABLE ON REQUEST: • Material infeed/outfeed roller track available in various sizes with millimetre rule and mechanical length stop. • Pneumatic vice. • Mechanical blade speed variator 20/100 mt/1'.
