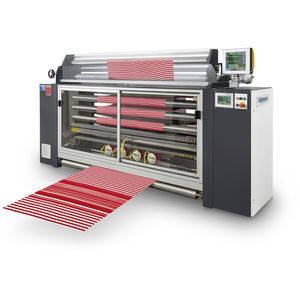

Weft straightener KOMBI

Diagonal, curved and sinusoidal texture correction machine. Speed Compensator Dancing roller group at the outlet, made up of two rollers on an oscillating frame for perfect synchrony and adjustment of the fabric tension. Reading Bridge With fixed, mobile or scanning (optional) Bianco® STD3 sensors. Two Bow Rollers Rubber-coated, they guarantee perfect adjustment of curved distortions. Diagonal Frame Three idle rollers ensure perfect adjustment of diagonal distortions. Pinwheels Two 800 mm diameter idle wheels, with pin sectors along the circumference, rotate at different speeds based on weft distortions. Tensioning Roller Ensures fabric distension before pinwheels. Proportional Photocell Ftc7 Detects fabric position and drives pin wheels. Spreading Unit 220° Spiral roller for distension the fabrics without tension Introduction and bypass roller Placed immediately before the wheels, it ensures the correct positioning of the fabric.
