12 Vdc UPS DC2412-UPS
with supercapacitorcompactcustom

12 Vdc UPS - DC2412-UPS - Bicker Elektronik GmbH - with supercapacitor / compact / custom
12 Vdc UPS - DC2412-UPS - Bicker Elektronik GmbH - with supercapacitor / compact / custom
Add to favorites
Compare this product

Characteristics

Electrical characteristics
12 Vdc
Type of energy storage
with supercapacitor
Other characteristics
compact, custom
Applications
industrial, medical, POS
Certifications
RoHS
Output power kVA

60 kVA
(81.577269 hp)

Input voltage

Max.: 32 V

Min.: 16 V

Output voltage

12 V

Description

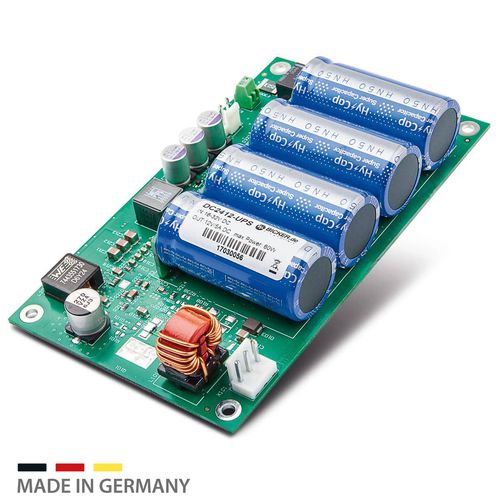

Bicker DC2412-UPS Supercap DC UPS with wide-range input 16...32 VDC DC/DC converter with UPS function 60W / 16-32VDC / 12VDC 5A / Supercaps The Supercap DC UPS with wide-range input 16...32 VDC bridges fluctuations, dips or failures of applied supply voltage and provides uninterruptible 12 VDC output. Supercaps are particularly durable, cycle-resistant and maintenance-free. The Supercaps are charged during normal operation and ensure the uninterruptible power supply. The highly efficient design enables fanless operation in the extended industrial temperature range. The DC2412-UPS is the fail-safe 12-volt power supply with ultra-capacitors for IoT / Industrial 4.0, kiosk, POI / POS, signage, medical devices and many more! • DC UPS with wide-range input 16...32VDC and uninterruptible 12VDC output • Supercaps for energy storage • Maintenance-free and fanless • High cycle stability >500.000 • Charge time <60 sec at maximum charge current • High efficiency 94% typ. • Extended temperature range -20...+70 °C • Compact design • Active reverse polarity protection • Power Fail signal via relay, RS232 connection • Tailored UPS software included

Catalogs

DC2412-UPS
DC2412-UPS
6 Pages
UPSIC-1205
UPSIC-1205
5 Pages
UPSIC-2403
UPSIC-2403
5 Pages
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
