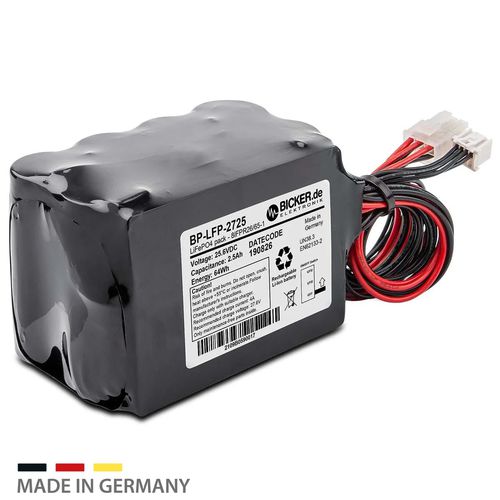

High density energy battery module BP-LFP-2725
lithium iron phosphatemodular24 V

high density energy battery module
high density energy battery module
high density energy battery module
Add to favorites
Compare this product


Characteristics

Type
lithium iron phosphate
Configuration
modular
Voltage
24 V
Applications
for UPS, emergency power supply, for emergency lighting, high-temperature, industrial, for forklift trucks
Standard
IEC
Other characteristics
high density energy, deep cycle, high-performance, high-reliability, extended temperature range, BMS
Load capacity

2.5 Ah

Length / diameter

70 mm
(2.8 in)

Width

108 mm
(4.25 in)

Height

63 mm
(2.5 in)

Description

Bicker BP-LFP-2725 Safe battery pack with high energy density 25,6V / 2,5 Ah / 64Wh LiFePo4 battery pack The lithium iron phosphate battery pack BP-LFP-2725 with integrated battery management system (BMS) is designed for applications that place the highest demands on quality, safety and reliability. The intrinsically safe 10 year battery pack with high-energy density is designed for more than 6000 full cycles and is therefore ideally suited for use in particularly demanding applications in the industrial environment and medical technology. Due to the built-in high-performance LiFePO4 cells in combination with our innovative high current BMS system, the compact BP-LFP-2725 reliably delivers its full performance even at high operating temperatures up to +55°C (up to 15A continuous current) and when frozen at -20°C (up to 6A continuous current). The battery management system perfectly protects the cells from almost all harmful influences and ensures a permanently high capacity. Complex power saving modes prevent the battery pack from discharging quickly when not in use. • 10 years long-life battery pack • High reliability • Safe lithium iron phosphate technology • 100% free of lead and cadmium • Extended temperature range -20...+55°C • High performance BMS system • Advanced charging algorithms and cell balancing • Integrated protection against deep discharge, over current, over voltage and short circuit • Increased safety in the event of overcharging and short-circuiting of the battery pack • Compact shrink tube version • IEC 62133-2 safety certification • UN 38.3 transport certification
