LiFePO4 battery module BP-LFP-1025S
for UPSindustrialemergency power supply

LiFePO4 battery module
LiFePO4 battery module
LiFePO4 battery module
Add to favorites
Compare this product


Characteristics

Type
LiFePO4
Applications
for UPS, industrial, emergency power supply, for emergency lighting, commercial
Standard
IEC
Other characteristics
high density energy, deep cycle, high-reliability, extended temperature range, BMS
Load capacity

2.5 Ah

Length / diameter

103 mm
(4.1 in)

Width

Min.: 68 mm
(2.68 in)

Max.: 70 mm
(2.76 in)

Height

Min.: 30 mm
(1.2 in)

Max.: 32 mm
(1.3 in)

Weight

320 g
(11.29 oz)

Description

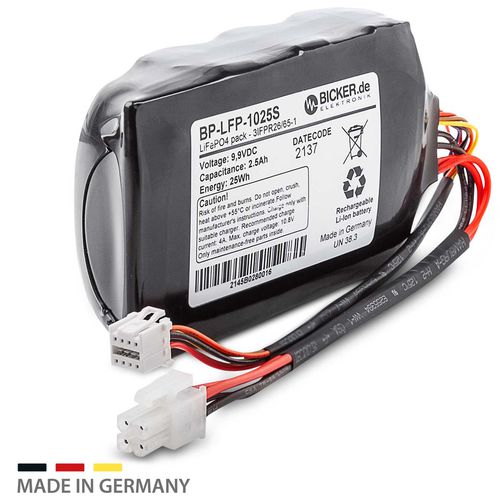

BP-LFP-1025S Safe battery pack with high energy density for system integration The high-quality LiFePO4 battery pack with IEC 62133-2 safety certification is characterized by a wide operating temperature range. With more than 6,000 charge/discharge cycles, the battery pack guarantees a long service life. In addition, the LiFePO4 pack offers a high energy density and is therefore ideally suited for use in particularly demanding applications in the industrial environment and medical technology. - System present function - Integrated temperature sensor - Very high storage capability - Ideal for long backup time - 100% lead and cadmium free - 5x higher life span than lead-acid batteries - Safe lithium iron phosphate technology - Extended temperature range -20…+55 °C - Compact and reliable design - IEC 62133-2 approved - UN 38.3 transport certification

Catalogs

BP-LFP-1025S
BP-LFP-1025S
19 Pages
