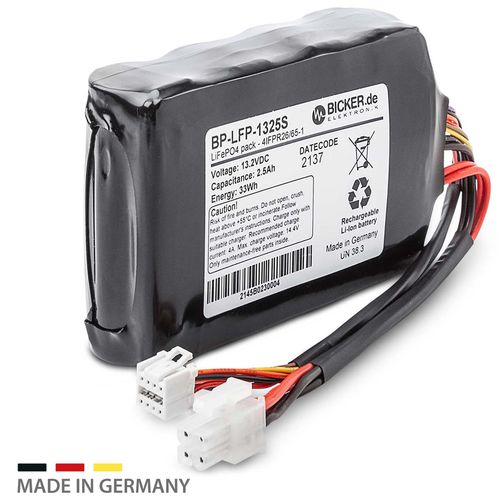

LiFePO4 battery module BP-LFP-1325S
for UPSemergency power supplyfor emergency lighting

LiFePO4 battery module - BP-LFP-1325S - Bicker Elektronik GmbH - for UPS / emergency power supply / for emergency lighting
LiFePO4 battery module - BP-LFP-1325S - Bicker Elektronik GmbH - for UPS / emergency power supply / for emergency lighting
LiFePO4 battery module - BP-LFP-1325S - Bicker Elektronik GmbH - for UPS / emergency power supply / for emergency lighting - image - 2
Add to favorites
Compare this product


Characteristics

Type
LiFePO4
Applications
for UPS, emergency power supply, for emergency lighting, industrial, commercial
Standard
IEC
Other characteristics
high density energy, deep cycle, high-performance, extended temperature range, BMS
Load capacity

2.5 Ah

Length / diameter

105 mm
(4.1 in)

Width

Max.: 70 mm
(2.76 in)

Min.: 68 mm
(2.68 in)

Height

Max.: 32 mm
(1.3 in)

Min.: 30 mm
(1.2 in)

Power

33 W

Weight

340 g
(11.99 oz)

Description

BP-LFP-1325S Safe battery pack with high energy density for system integration The high-quality LiFePO4 battery pack with IEC 62133-2 safety certification is characterized by a wide operating temperature range. With more than 6,000 charge/discharge cycles, the battery pack guarantees a long service life. In addition, the LiFePO4 pack offers a high energy density and is therefore ideally suited for use in particularly demanding applications in the industrial environment and medical technology. - System present function - Integrated temperature sensor - Very high storage capability - Ideal for long backup time - 100% lead and cadmium free - 5x higher life span than lead-acid batteries - Safe lithium iron phosphate technology - Extended temperature range -20…+55 °C - Compact and reliable design - IEC 62133-2 approved - UN 38.3 transport certification
