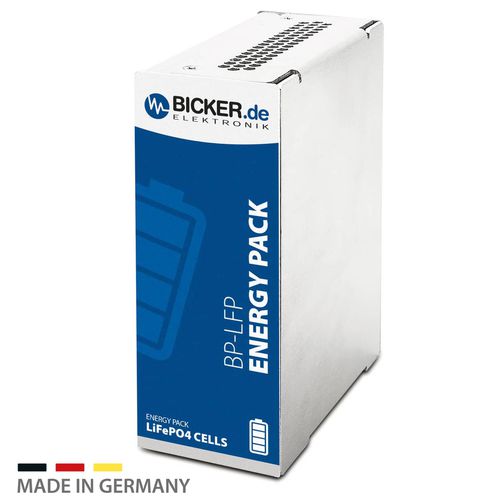

LiFePO4 battery module BP-LFP-1025SD
modularfor UPSindustrial

LiFePO4 battery module - BP-LFP-1025SD - Bicker Elektronik GmbH - modular / for UPS / industrial
LiFePO4 battery module - BP-LFP-1025SD - Bicker Elektronik GmbH - modular / for UPS / industrial
Add to favorites
Compare this product


Characteristics

Type
LiFePO4
Configuration
modular
Applications
for UPS, industrial, emergency power supply, for emergency lighting, commercial
Standard
IEC
Other characteristics
high density energy, deep cycle, high-reliability, extended temperature range, DIN rail mounted, BMS
Load capacity

2.5 Ah

Length / diameter

120 mm
(4.7 in)

Width

100 mm
(3.94 in)

Height

45 mm
(1.8 in)

Weight

600 g
(21.16 oz)

Description

BP-LFP-1025SD Safe battery pack with high energy density for DIN rail mounting The high-quality LiFePO4 battery pack with IEC 62133-2 safety certification is characterized by a wide operating temperature range. With more than 6,000 charge/discharge cycles, the battery pack guarantees a long service life. In addition, the LiFePO4 pack offer a high energy density. The robust metal housing has a universal DIN rail mounting system and is ideally suited for use in control cabinets and industrial applications. - System present function - Integrated temperature sensor - Very high storage capability - Ideal for long backup time - 100% lead and cadmium free - 5x higher life span than lead-acid batteries - Safe lithium iron phosphate technology - Extended temperature range -20…+55 °C - Compact and reliable design - IEC 62133-2 approved - UN 38.3 transport certification

Catalogs

BP-LFP-1025S
BP-LFP-1025S
19 Pages
