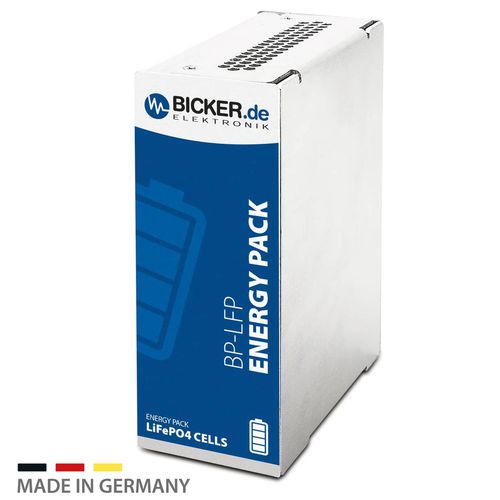

LiFePO4 battery module BP-LFP-1325SD
modularfor UPSemergency power supply

LiFePO4 battery module - BP-LFP-1325SD - Bicker Elektronik GmbH - modular / for UPS / emergency power supply
LiFePO4 battery module - BP-LFP-1325SD - Bicker Elektronik GmbH - modular / for UPS / emergency power supply
Add to favorites
Compare this product


Characteristics

Type
LiFePO4
Configuration
modular
Applications
for UPS, emergency power supply, for emergency lighting, industrial, commercial
Standard
IEC
Other characteristics
high density energy, deep cycle, high-reliability, extended temperature range, DIN rail mounted, BMS
Load capacity

2.5 Ah

Length / diameter

120 mm
(4.7 in)

Width

100 mm
(3.94 in)

Height

45 mm
(1.8 in)

Power

33 W

Description

BP-LFP-1325SD Safe battery pack with high energy density for DIN rail mounting The high-quality LiFePO4 battery pack with IEC 62133-2 safety certification is characterized by a wide operating temperature range. With more than 6,000 charge/discharge cycles, the battery pack guarantees a long service life. In addition, the LiFePO4 pack offer a high energy density. The robust metal housing has a universal DIN rail mounting system and is ideally suited for use in control cabinets and industrial applications. - 10 years long-life battery pack - Five times higher service life than lead batteries - High reliability - Safe lithium iron phosphate technology - System present function - 100% free of lead and cadmium - Extended temperature range -20...+55°C - Integrated temperature sensor - Smart-BMS controlled - Ideal für Langzeitüberbrückung - Ruggedly constructed DIN rail version - IEC 62133-2 safety certification - UN 38.3 transport certification
