Open-frame DC/DC converter DC300WSbucknon-isolatedpower
Add to favorites
Compare this product
Characteristics
- Configuration
- open-frame
- Electrical characteristics
- buck, non-isolated, power, step-up
- Applications
- industrial, for industrial networks, for medical applications
- Other characteristics
- compact, wide input range, adjustable, triple-output, with overheating protection, with overcurrent protection, Buck-Boost, configurable, with overvoltage protection, low-profile, variable-output, slim
- Input voltage
Min.: 6 V
Max.: 36 V
- Output voltage
12 V, 19 V, 24 V
- Power
300 W
Description

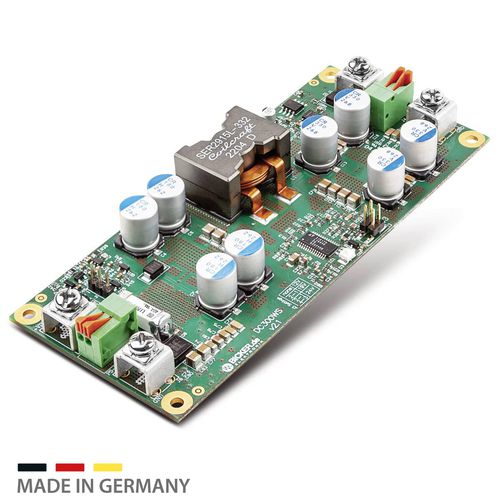

300W DC/DC converter with adjustable output voltage +12V /+19V /+24V
6-36VDC wide range input / contact cooling
Fanless industrial 300 Watt DC/DC converter with wide range input 6–36 V and three selectable output voltages of 12V / 19V or 24V. The DC/DC converter DC300WS delivers fanless 300 watts continuous power at a constant high efficiency of up to 98%. In addition to the ultra-wide input range of 6 to 36 VDC, the compact converter offers three jumper-selectable output voltages of 12, 19 or 24 VDC, so that virtually any equivalent single-voltage mainboard or computer system can be powered..
- Powerful DC/DC converter
- Ultra wide input range 6...36VDC
- Adjustable output voltage +12V, +19V or +24V
- Very compact design W/H/D 132mm/17mm/56mm
- Full performance in the extended temperature range of -20°...+60°C
- Very high efficiency up to 98%
- More than 10 years capacitor lifetime
- Optional output voltage compensation via sense lines
- Optional Remote On/Off
- Incl. thermal pad, jumper and distance bolts
Catalogs
DC300WS
19 Pages
