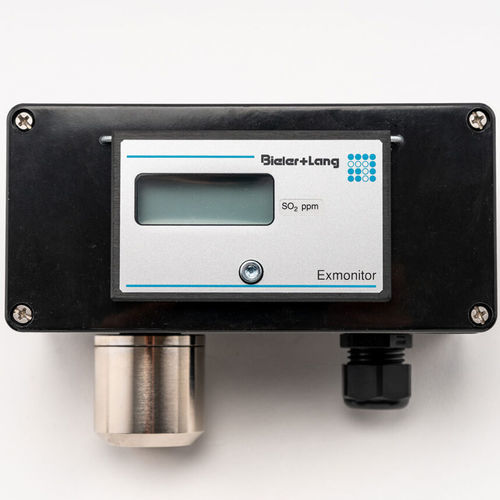

Gas detector Exmonitor seriesO2toxic gasCO
Add to favorites
Compare this product
Characteristics
- Detected entity
- gas
- Gas type
- O2, toxic gas, CO, NH3, H2S, O3, nitrogen dioxide, NO, Cl2, SO2, HCl
- Technology
- electrochemical
- Application
- monitoring
- Other characteristics
- ATEX
- Output
- 4-20 mA, 2-wire
Description
The Exmonitor detector are used to measure and display toxic gases or oxygen. An electrochemical measuring cell is used for the measurement.
Especially in Ex-zones the devices of the Exmonitor series are used.
A type examination certificate for the electrical safety of the operating equipment is available.
Technical data
• EC type examination according to RL 2014/34/EU,
• Electrical safety of the equipment:
II 2G
Ex ia IIC T4 Gb
BVS 03 ATEX E 384
• detectable gases: CO, H2S, NO, NO2, SO2, Cl2, HCN, H2, HCl, NH3, O3, C2H40, O2 , u. s. w
• Concentration display
• Measuring range depending on gas
• Measuring principle electrochemical measuring cell
• linear measuring signal 4 – 20 mA
• One-man calibration directly at the detector
• 2-wire technology
