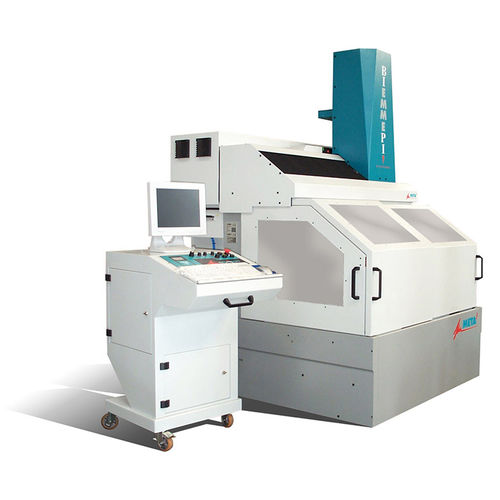

3-axis CNC machining center META STD , META PLUSverticalgantrymilling
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- gantry
- Associated functions
- milling
- Other characteristics
- high-speed, compact
- X travel
850 mm
(33.46 in)- Y travel
600 mm, 1,200 mm
(23.62 in, 47.24 in)- Z travel
400 mm
(15.75 in)- Rotational speed
30,000 rpm
(188,496 rad.min-1)- Power
11.5 kW
(15.64 hp)
Description
A new range of high speed milling machines has been presented by BieMmePi in 1996. These machines, named META, have a fixed gantry structure and is available in two different sizes (X=850mm Y=600mm Z=400 mm or X=850mm Y=1200mm Z=400 mm for the PLUS version) are equipped with tool magazine and automatic tool changer. The electrospindle power and the compact, stiff construction allow the machining of general mechanics components, molds and other different applications.
