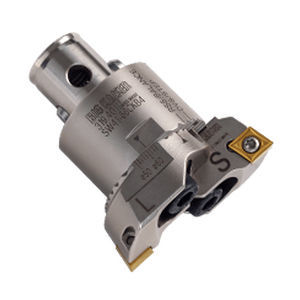

Roughing boring head SW 319

Series SW 319 twin cutter rough boring heads are designed for heavy duty rough boring and semi-finishing operations. The short and compact design of the components combined with a positive and friction locked connection between the tool body and insert holders provide maximum rigidity and highest cutting performance. This twin cutter series has a unique design feature allowing different roughing methods without the need to change components or use mechanical systems to adjust insert height. Simply reverse the insert holders to switch between balanced and stepped cutting! Ground serrations on the mating surfaces of both tool body and insert holder permit a rigid connection and an accurate tool length. A diameter scale on the insert holders allows diameter adjustment without a presetter. Tool body and insert holders are completely protected against corrosion by a high quality coating. Different accessories also permit chamfering, back boring and face grooving. Stock removal of the final diameter of up to 40% Repeatable length accuracy due to ground serrations on the mating surfaces of both tool body and insert holder Insert holders for extended boring range as well as back boring Coated tool body and insert holder
