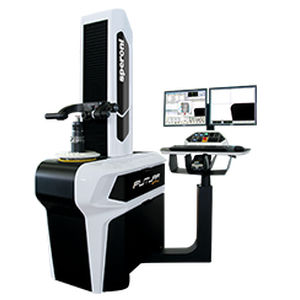

Optical tool presetter SPERONI STP FUTURA

for tool holders

Future proof technology SPERONI STP FUTURA is the standard by which all other tool presetters are measured. FUTURA is a high precision modular tool presetting system designed to increase profits and available machining time. All Speroni STP FUTURA models can achieve repeatable precision of 1 micron or better. FUTURA is constructed with Pearlitic class 40 cast iron; this provides for added precision and consistency to measurements and increased system stability and durability. The first class quality and construction of Speroni tool presetters are complimented by a world class service and support team The structure of the FUTURA is completely made of aged pearlitic cast iron in order to guarantee the best thermal stability Micron precise Heidenhain® glass scales, state of the art Schneeberger® guideways and the largest and toughest recirculating ball bearing contact face in its class, guarantees the highest precision and repeatability along the whole system’s measuring range The solid design eliminates the need for frequent recalibration, guaranteeing the precision and repeatability of your system High frequency sub-pixel analysis delivers a 45x standard optical magnification Integrated high precision vertical rotating spindle — robustness, reliability and unmatched precision — 1μ concentricity and T.I.R @ 300 mm of less than 5μ
