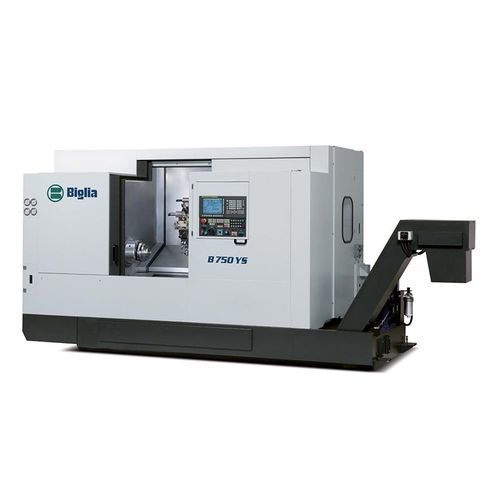

CNC turning center B750 series

2-axisuniversal12 tools

The B750 series represents the “state of the art” of multifunction turning centres. The new turret with direct drive built-in motor and rotary motion being transmitted directly to the rotary tools is the heart of this range of machines. Available in 5 versions, the B750 line of machines provides a wide spectrum of machining possibilities ranging from universal turning to complete machining of complex parts thanks to the CNC automatic tailstock, sub-spindle and rotary tools. More accuracy Biglia servo-turret with direct drive The fast indexing (0,3 sec.) and sturdy BIGLIA 16-station servo-turret, featuring a large HIRTH coupling (230 mm) can accept up to 34 tools that can work simultaneously. The new live tooling system is the main feature of this new turret, with the rotary motion being transmitted by the built-in motor, integrated in the tool plate, directly to the rotary tool. Wide range of equipment and optionals. Live tools This new turret equipped with a cooled direct drive built-in spindle motor (10-17,5 kW - max. 10000* rpm) to drive the rotary tools represents the main feature of the new B750/B1250 series. The kinematic chain has been eliminated. The motion is now transmitted by a direct coupling between the integrated motor and the rotary tool. The main advantages are: - REDUCTION OF VIBRATION DAMPENING - ELIMINATION OF POWER LOSS AND MECHANICAL PLAY - REDUCTION OF HEAT Standard features – Cast-iron machine bed – 12/16 position BIGLIA servo-turret – Tooling kit (toolholders & bushings) – Cooling system – Chip conveyor – Two color alarm lamp – Coolant supply (medium pressure) including filter – Electrical cabinet air conditioned
