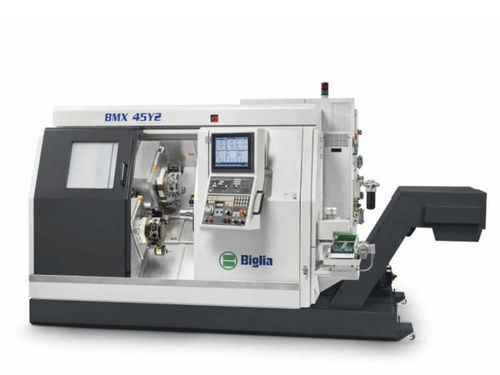

CNC turning center BMX45-Y2
multi-axis12 toolspowerful

Add to favorites

Compare this product

Characteristics

Control type: CNC
Number of axes: multi-axis
Number of tool stations: 12 tools
Performance: powerful
Other characteristics: compact
Diameter: 140 mm, 220 mm
(5.51 in, 8.66 in)
Spindle speed: 4,500 rpm, 6,000 rpm
(28,274.334 rad.min-1, 37,699.112 rad.min-1)
Maximum part length: 180 mm, 230 mm, 350 mm
(7 in, 9 in, 14 in)
Maximum cutting diameter: 100 mm, 200 mm
(4 in, 8 in)
Bar capacity: 45 mm, 51 mm, 70 mm
(2 in, 2 in, 3 in)
Axe X: 170 mm
(7 in)
Axe Z: 390 mm
(15 in)
Rapids on X: 15,000 mm/min
(10 in/s)
Rapids on Z: 30,000 mm/min
(20 in/s)
Nominal power: 11 kW, 26 kW
(15 hp, 35.4 hp)
Maximum torque: 95 Nm, 223 Nm
(70 ft.lb, 164 ft.lb)
Coolant capacity: 200 l
(53 gal)
Overall lenght: 4,520 mm
(178 in)
Overall width: 1,910 mm
(75 in)
Overall height: 2,195 mm
(86 in)
Weight: 6,000 kg
(13,228 lb)

Description

The BMX 45Y2 has a very compact structure offering optimum use of available space in the workshop. The sturdy cast-iron construction featuring a 45° slant bed, the robust mechanical components combined with powerful spindle motors (11Kw) and live tools (max 4.6 kW) will allow you to achieve significant results: - optimal machining of all materials, especially tough alloys. - reduction of cycle times and longer tool service life. - perfect and efficient method of ‘Chip’ removal. - ergonomics and easy access for setup and retooling operations. Live tooling The BMX 45Y2 is equipped with two rugged and quick Biglia servo turrets. Live tooling on all positions. Up to 30 tools can work simultaneously. The rotary tools are driven by a motor with 22 Nm torque, 2,2/4.6 kW power and speed range of 6000 rpm/min. Prepared to accept automation Interface for bar loader Interface for gantry loader for automatic loading
