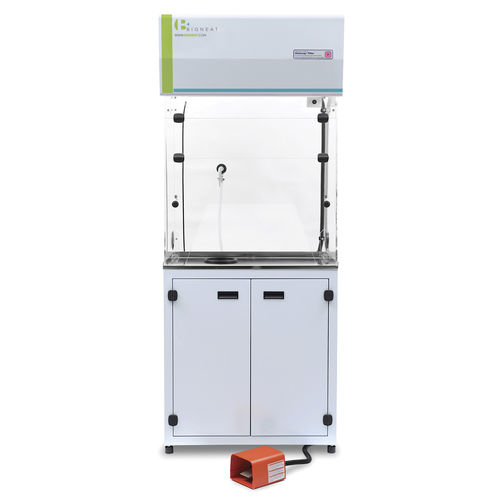

Fixed dispensing station FD 8004

electric

This Chemical Dispensing Station is derived from Bigneat’s world renowned Chemcap Clearview Ductless Fume Cabinet. Chemcap ductless fume cabinets operate with finely controlled air flow and are built and operate to recognised worldwide Standards for hazard containment as well as operator safety. Filtration used in Chemical Dispensing Station Pre-filtration eliminates particles at 5.0μm or larger to an efficiency of 92% as defined in BS EN ISO 779. Carbon Filtration filtration efficiency of 99.9%, meets BS 7989:2001 Standard. Performance and Standards Chemcap Chemical Dispensing Station meets the requirements of major and recognised Standards worldwide for containment and filtration, for example: • ANSI/ASHRAE 110: 1995 12-203 (for containment efficiency) YOUR SAFETY IS OUR PRIORITY DESCRIPTION AND OPERATION Bigneat’s Chemcap Chemical Dispensing Station is manufactured to a very high standard using only the best quality materials, fans and components. The fan housing is fabricated from mild steel with an epoxy coated, acid resistant white coating. The enclosure is frameless and manufactured from optically clear fire-retardant acrylic which is UV stable, chemically resistant and easy to clean. The cabinet is mounted on an epoxy coated steel cupboard with cupboard doors (with magnetic catches) and height-adjustable feet. The enclosure is equipped with a stainless steel base-tray and tap coupled to the pump in the cupboard via tubing. A cup-sink drains down to the aspirator bottle below. The lower cupboard contains a stainless steel tray to accommodate the 25-litre capacity aspirator bottle and electric pump.
