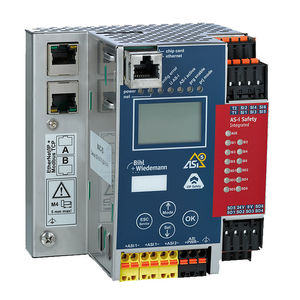

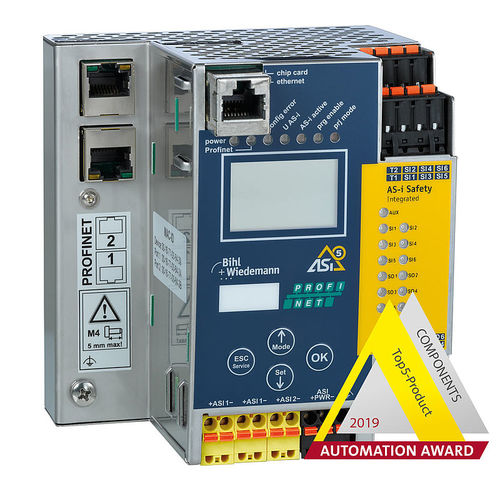

Communication gateway BWU3674

EthernetASiProfiNet

ASi-5/ASi-3 PROFIsafe via PROFINET Gateway with integrated Safety Monitor, 2 ASi-5/ASi-3 masters, OPC UA server, integrated decoupling, max. 4 A per ASi circuit, ASi current measurement in the gateway, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), expandable to max. 62 x 2 channels safe inputs, 1922 x 2 channels safe inputs in max. configuration, 6 release circuits (6 x electronic safe outputs), expandable to max. 64 safe outputs, 1984 safe outputs in max. configuration, PROFIsafe (F-CPU) and Safe Link, diagnostic and configuration via PROFINET or Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20 Technical data ASi-5/ASi-3 - ASi-5 + ASi-3 compatible Number of ASi networks, number of ASi Master - 2 ASi networks, 2 ASi-5/ASi-3 Masters Integrated decoupling, ASi current measurement in the gateway - yes, max. 4 A/ASi network Inputs Safety, SIL 3, Cat. 4 - 3 x 2 channels Outputs Safety, SIL 3, cat. 4 - 6 release circuits, 6 x electronic safe outputs Safety communication - PROFIsafe (F-CPU) + Safe Link
