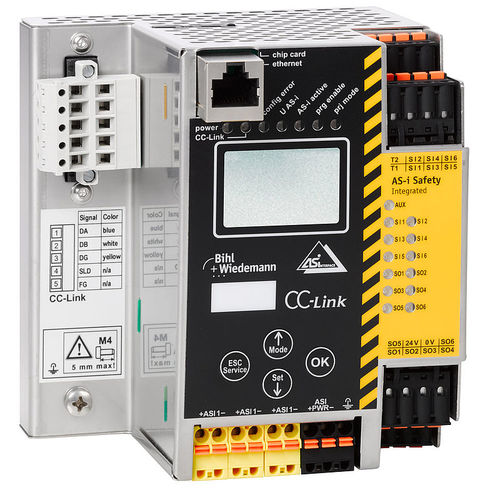

ASi-3 CC-Link Gateway with integrated Safety Monitor, 1 ASi-3 master, integrated decoupling, max. 4 A per ASi circuit, ASi current measurement in the gateway, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), expandable to max. 31 x 2 channels safe inputs, 1891 x 2 channels safe inputs in max. configuration, 6 release circuits (6 x electronic safe outputs), expandable to max. 31 safe outputs, 991 safe outputs in max. configuration, Safe Link, diagnostic and configuration via Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20
Technical data
Fieldbus interface - CC-Link
Safety communication - Safe Link
Model - Gateway with integrated Safety Monitor
Inputs Safety, SIL 3, Cat. 4 - 3 x 2 channels
Outputs Safety, SIL 3, cat. 4 - 6 release circuits, 6 x electronic safe outputs
Number of ASi networks, number of ASi Master - 1 ASi network, 1 ASi-3 Master
Integrated decoupling, ASi current measurement in the gateway - yes, max. 4 A/ASi network
