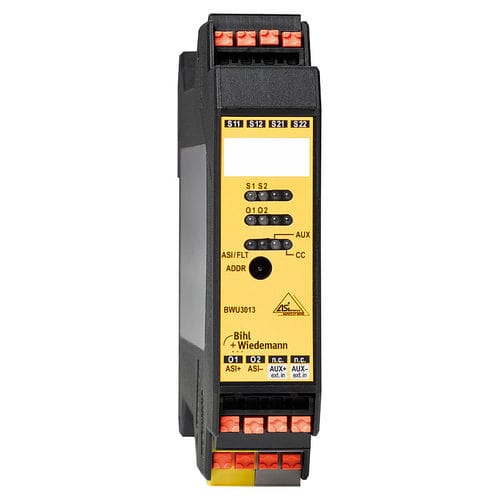

Digital input module BWU3013

ASisafetyvoltage

ASi Safety Input Module in IP20, 22,5 mm x 114 mm, with 4 x 4 contacts, 1 x 2 channels safe input (SIL 3, cat. 4) for floating contacts, 2 digital outputs, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, periphery connection via Push-in terminals, without limitation of connector cable length (loop resistance 150 Ohm), ASi connection via Push-in terminals, 1 single address Technical data Inputs Safety, SIL 3, Cat. 4 - 1 x 2 channels Safety signal inputs - floating contacts Input voltage (sensor supply) - out of AUX Output voltage (actuator supply) - out of AUX ASi address - 1 Single address
