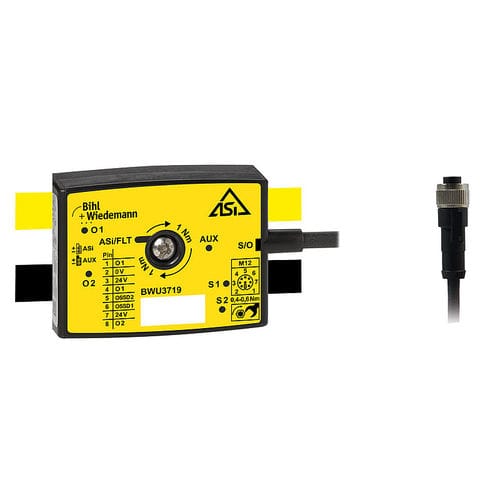

Cable distributor BWU3719

digital

Active Distributor ASi Safety, IP67, housing depth 19 mm, 1 x 2 channels safe input (SIL 3, cat. 4) for OSSDs, 2 digital outputs, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, periphery connection via 1 x M12 cable socket, straight, 8 poles, cable length 2 m, flat design, installation in cable duct possible (installation depth >19 mm), connections for 1 x ASi and 1 x AUX profile cables, ASi connection via profile cable and piercing technology, 1 single address. To connect Leuze MLD530-RT3M to ASi. Technical data Inputs Safety, SIL 3, Cat. 4 - 1 x 2 channels Safety signal inputs - OSSDs Input voltage (sensor supply) - out of AUX Output voltage (actuator supply) - out of AUX ASi address - 1 Single address Special function - to connect Leuze MLD530-RT3M (operation mode 5) to ASi
