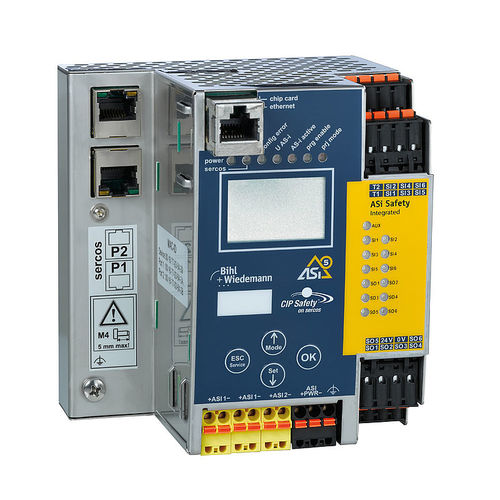

Communication gateway BWU3860

EthernetASiIP20

ASi-5/ASi-3 CIP Safety over Sercos Gateway with integrated Safety Monitor, 2 ASi-5/ASi-3 masters, integrated decoupling, max. 4 A per ASi circuit, ASi current measurement in the gateway, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), expandable to max. 62 x 2 channels safe inputs, 1922 x 2 channels safe inputs in max. configuration, 6 release circuits (6 x electronic safe outputs), expandable to max. 64 safe outputs, 1984 safe outputs in max. configuration, CIP Safety via Sercos and Safe Link, diagnostic and configuration via Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20 Technical data Type - Safety, Sercos ASi-5/ASi-3 Safe Monitoring - depending on drive Encoder signal/Sensor signal - depending on drive Number of monitored axes - up to 22 independant axes Inputs Safety, SIL 3, Cat. 4 - 3 x 2 channels Outputs Safety, SIL 3, cat. 4 - 6 release circuits, 6 x electronic safe outputs Encoder/Sensor connection - clamps Diagnostic and configuration interface - Ethernet diagnostic
