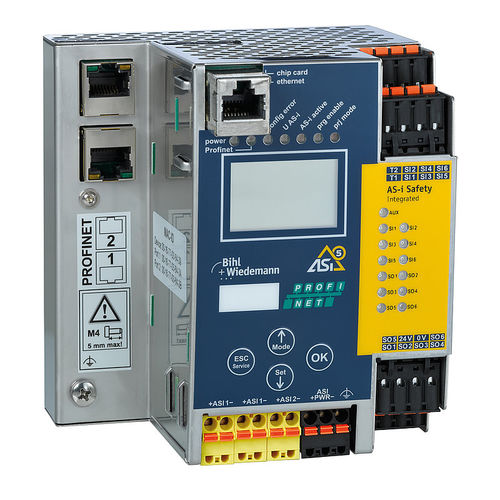

Communication gateway BWU395

EthernetFieldbusASi

ASi-5 – Great data bandwidth, short cycle times PLC Independent Safety Technology Safe Link Safe Link OPC UA interface and REST API for IIoT applications Integrated web server for simple diagnostics and maintenance ASi-5/ASi-3 PROFINET Gateway with integrated ASi-5/ASi-3 Safety Monitor, 2 ASi-5/ASi-3 masters, OPC UA server, REST API, integrated decoupling, max. 4 A per ASi circuit, ASi current measurement in the gateway, up to 12 digital inputs or 6 x 1 channel safe inputs (SIL1, cat. 2, PLc) or 3 x 2 channels safe inputs (SIL 3, cat. 4, PLe), expandable to max. 62 x 2 channels safe inputs, 1922 x 2 channels safe inputs in max. configuration, 6 release circuits (6 x electronic safe outputs), expandable to max. 64 safe outputs, 1984 safe outputs in max. configuration, Safe Link, diagnostic and configuration via PROFINET or Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20 Technical data Fieldbus interface - OPC UA, PROFINET, REST API Safety communication - Safe Link Model - Gateway with integrated ASi-5/ASi-3 Safety Monitor Inputs Safety - 3 x 2 channels, 6 x 1 channel Outputs Safety - 6 release circuits, 6 x electronic safe outputs Number of ASi networks, number of ASi Master - 2 ASi networks, 2 ASi-5/ASi-3 Masters Integrated decoupling, ASi current measurement in the gateway - yes, max. 4 A/ASi network
