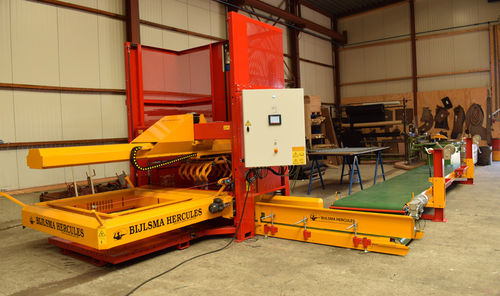

Palletizer with stacker BHB 550-2

bagfor leveling

The bags are fed to the machine by an optional (sewing) conveyor. A bag tilter tips the bags onto the infeed roller conveyor. Specially shaped rollers ensure that the bags are flattened. A bag lift lifts the bags, after which they are grasped at the correct height by a product-friendly gripper. The gripper, which is mounted on a trolley, moves to the correct position above the pallet and releases the bag. The bag is placed in the right place via a filling funnel. STANDARD EQUIPPED WITH • Possibility to create a random stacking program on the touchscreen. The system is provided with stacking categories, making it easy to implement. • Infeed of the bags and outfeed of stacked product is possible from several sides. • Positioning of each bag is easy to change. • Stacking hopper for perfect stacking of the pallets. The stacking hopper is equipped with inserts for Euro pallets and cooling pallets. Standard dimensions 1,600 x 1,600 mm, 275 mm high. • Switchbox with hinge construction. • Control of the motors by frequency converters. • Rubber / nylon running wheels, so there is no noise and wear on the transport mechanism of the bags. • Height adjustment by a robust chain instead of a steel cable or lifting straps. • Roller conveyor with 10 oval rollers for leveling the bags and an optimal stacking result. • Electric bag lift with a double V-belt construction for a high capacity. • Plug-in sleeves for easy moving of the machine with a forklift. • Potential free contact for connection to a sewing street.
